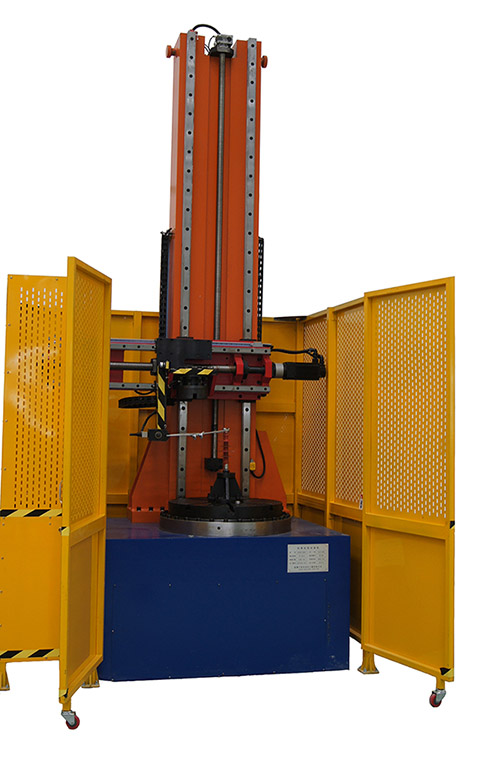

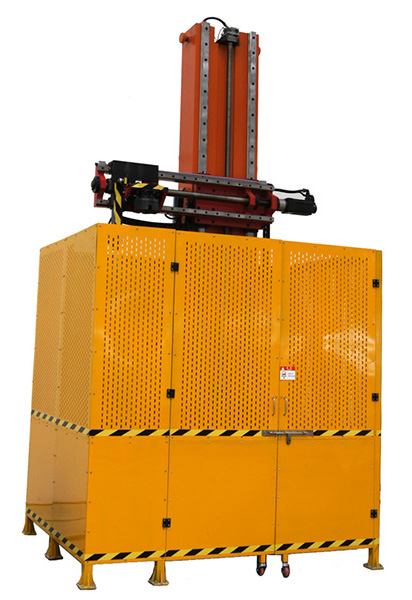

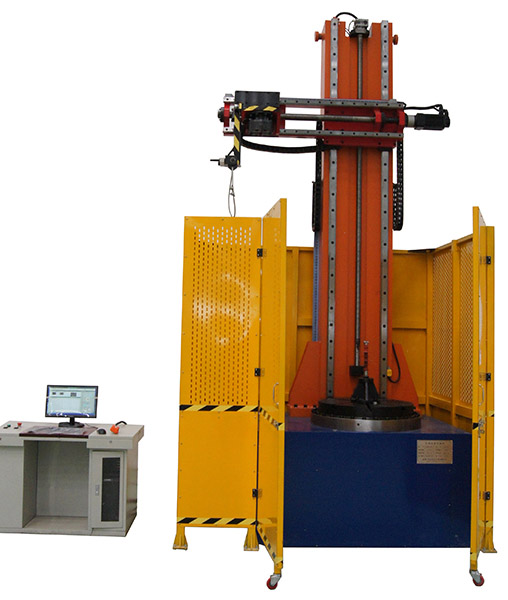

آلة اختبار الانحناء والالتواء للعوازل

Max testing force: 50kN
Testing range and accuracy
50kN Sensor: Testing range:1-100%, accuracy: better than±1％
Testing force accuracy
Constant speed control of the force
Pressure holding accuracy: ±1% of the value set
Control range of force under constant speed of 0.1～100%FS/min
Controlling range: 2～100%FS
Force can be set in above cited range and hold pressure
Bending test can be done in 4 direction
Max torque: 10kN.m
Torsion test accuracy: ±1%
Rotatable calibration: no restriction
Rotatable angel: 4 direction
Measuring accuracy of torsion: less than 0.1°

Type of test: sample test
