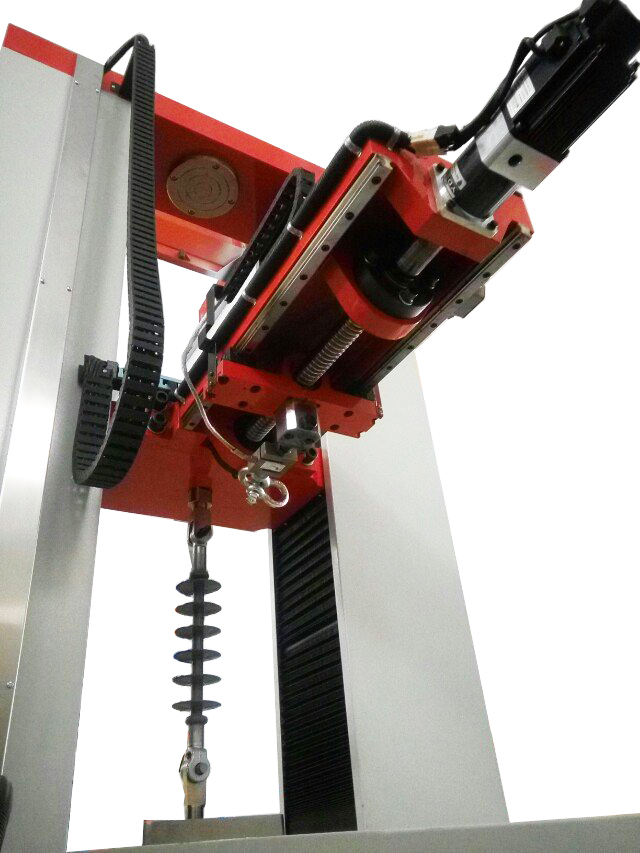

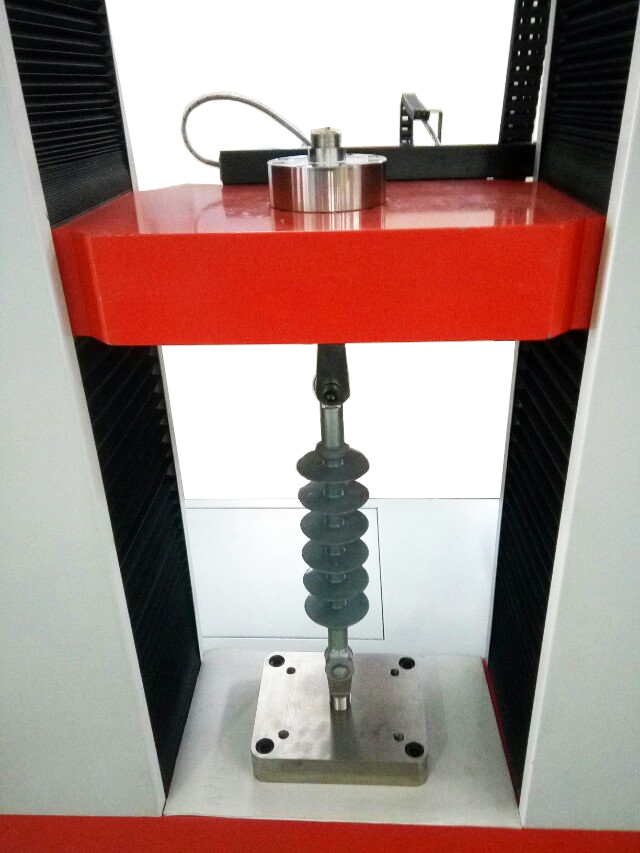

آلة اختبار الشد والانحناء للعوازل

Model. CT-TBT100
Max Tensile load: 100kN
Max Cantilever load: 20 kN
Cantilever stroke: 200mm
Valid range of strength measured: 5%~100%FS
Accuracy of strength measurement: Better than ±1%
Testing speed: 0~ 400mm/min
Accuracy of deformation measurement: Better than 1%
Accuracy of displacement measurement: Better than 1%
Valid space of tension: 0-1000mm(can be customized)
Valid space of compression: 1000mm(can be customized)
Width of frame: 500mm
Dimension of main body(L*W*H): 1150*1300*2400mm
Power consumption: 3kW
